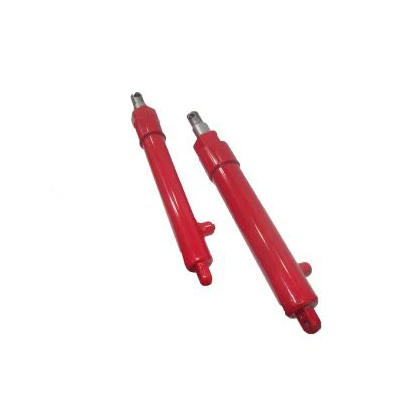

Single Acting Log splitter hydraulic cylinder

Wood splitting machine hydraulic ram cylinder


Product Description:

1.Single-acting

2.Superior Quality Chrome Plated & Polished Rod

3.Honed & Finished Steel Tube

4.Top Quality Seals

5.Color could be as per requirements.


Our Services

12 months or more, and we supply top quality and best service always.


Packaging & Shipping

1. Packing: Steel Pallet,  Plywood Case, or As per requirements.

2. Shipping: By sea, By air, or By express company.


Delivery time:

25-35 days for bulk production, which is depend on production process and so on.



Payment term:

T/T, L/C,West Union.




PARAMETER
Max.Cylinder   Bore300mm
Max.Piston Rod Dia.280mm
Max.Retract Length3500mm
Max .StrokeSingle   stage cylinder 6500mm
Multi-stage cylinder 12000mm
Max.Working Pressure35Mpa
Min.Working Pressure10Mpa
Working Pressure of Heavy-duty Cylinder40Mpa

Material   :

Piston: 45# steel

Tube: 20# steel

Piston rod: chrome plated 45# steel

Cylinder cap: 20# steel

Cylinder base:   20# steel

Seal ring: famous Chinese brand or international brand
